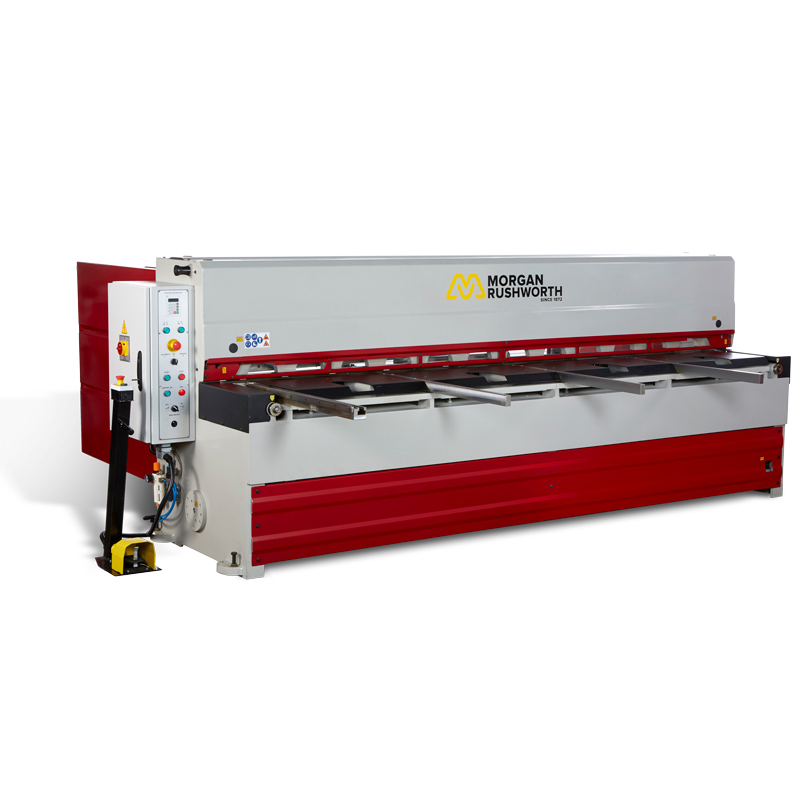

Morgan Rushworth RGMS 4100.3 Mechanical Guillotine Shear
The RGMS range of powered mechanical guillotines are designed for fast and accurate cutting of sheet material. They are available in a wide range of widths and cutting capacities from 2 to 4mm based on mild steel. They are fitted as standard with blades suitable for cutting both mild and stainless steel and a 750mm powered back gauge with a programmable NC control. Other features are a tee slotted squaring arm, flat front support arms and a support table with ball transfer units.
Download Product Sheet Email Enquiry
FEATURES & BENEFITS
-
1350mm to 3050mm Cutting Widths
-
2 to 4mm Shearing in Mild Steel
-
Standard 750mm Back Gauge Range
-
Standard 750mm Back Gauge Range
-
Options include pneumatic sheet supports
FEATURES & OPTIONS AVAILABLE
- Very rigid welded steel frame
- Alloy steel blades for mild or stainless steel cutting
- Automatically activated hold down system to prevent sheet sliding during cutting
- 750mm powered back gauge with NC control
- Support table with ball transfers
- 1000mm ruled squaring arm with tee slot
- Flat front support arms
- Illuminated cutting area with shadow line
- Single or continuous cutting modes
- Foot pedal control
- Increase back gauge stroke to 1000mm
- Angle gauge
- Pneumatic sheet supports (requires compressor)
- Pneumatic sheet Supports with return to sender function (requires compressor)
Technical Specification
Model:
| MODEL | RGMS 4100.3 | |
| Cutting Length | mm | 4100 |
| Cutting Capacity | mm | 3 |
| Cutting Angle | 1°30 | |
| Stroke Per Minute | 31 | |
| Motor | kW | 11.0 |
| Table Width | mm | 455 |
| Table Height | mm | 880 |
| Backgauge Adjustment | mm | 750 |
| Length | mm | 5300 |
| Width | mm | 2250 |
| Height | mm | 1400 |
| Weight | kg | 5400 |
