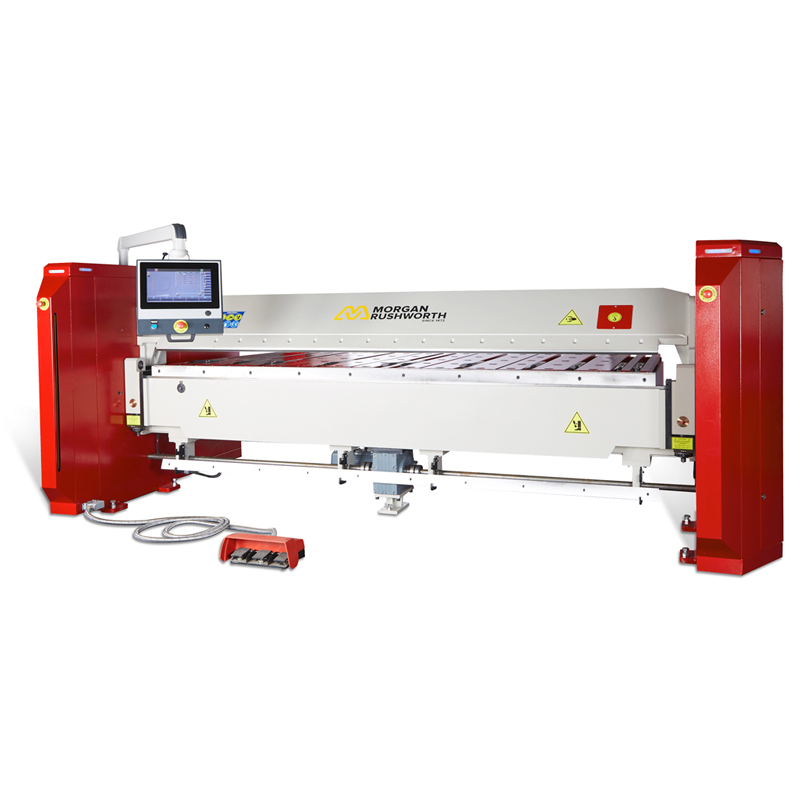

Morgan Rushworth ESR 2550.25 CNC Folding Machine 415V
The Morgan Rushworth ESR range of CNC folders are designed to produce fast, accurate and consistent folded parts. Available from 1.5M to 4.2M bending lengths, all models are supplied with a 1M powered back gauge, with optional longer backguages including U and L shaped configurations. The backgauge is integral to the rear support table, which is ideal for the folding of large sheets as the weight of the material is supported, resulting in a traditionally two operator job, being able to be performed with just one.
The advanced 2D touch screen CNC, controls all upper beam clamping, folding beam and back gauge movements, with programming carried on the machine or on office PC. Once the operator has drawn the job onto the screen, entered the angles and dimensions, selected the tooling from the library, the CNC then firstly calculates whether the job is possible or not, the developed length and the bending sequence including whether to turn material over or around. All ESR models are supplied with a straight rail with optional high divided tools for the production of box and panel type operations.
Download Product Sheet Email Enquiry
FEATURES & BENEFITS
-
20 degree sharp nose folding beam tool
-
Flat bottom tool to reduce marking
-
2050 to 4200mm Bending Lengths
-
1.5 to 5mm Folding in Mild Steel
-
Standard 2D control with option of 3D
-
Options include extended back gauge travel
Watch it in Action...
The ESR range of CNC folders are designed to produce fast, accurate and consistent folded parts. Available from 1.5M to 4.2M bending lengths, all models are supplied with a 1M powered back gauge, with optional longer backguages including U and L shaped configurations.
FEATURES & OPTIONS AVAILABLE
- Bending angle from 0 – 150 degrees
- 20 degree 1mm sharp nose clamping beam rail with 25mm clearance
- 10mm and 25mm wide folding beam rails

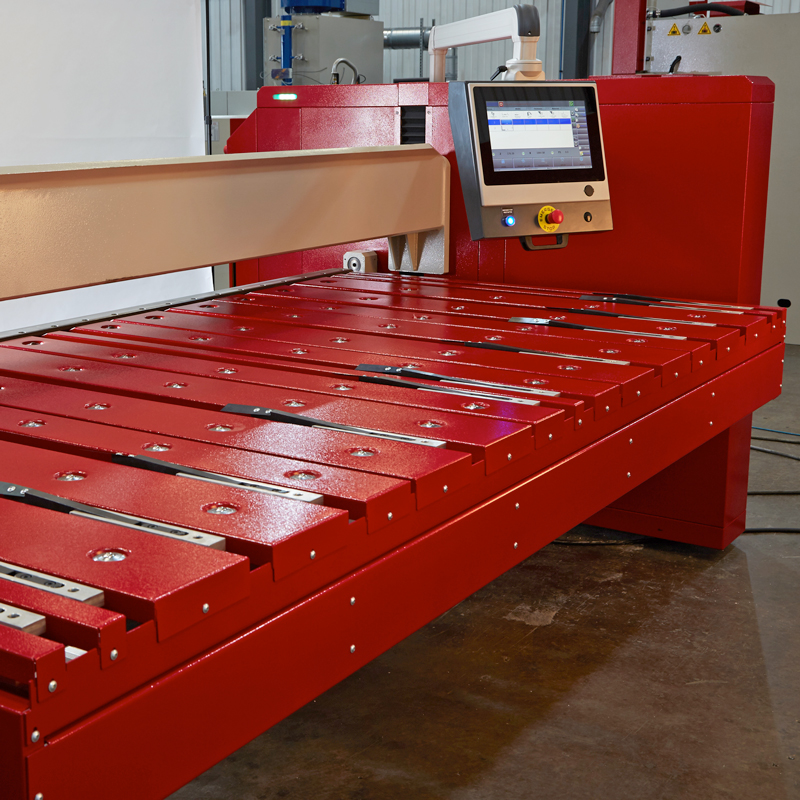

- Fast 1 metre powered backgauge integral to rear table with roller balls

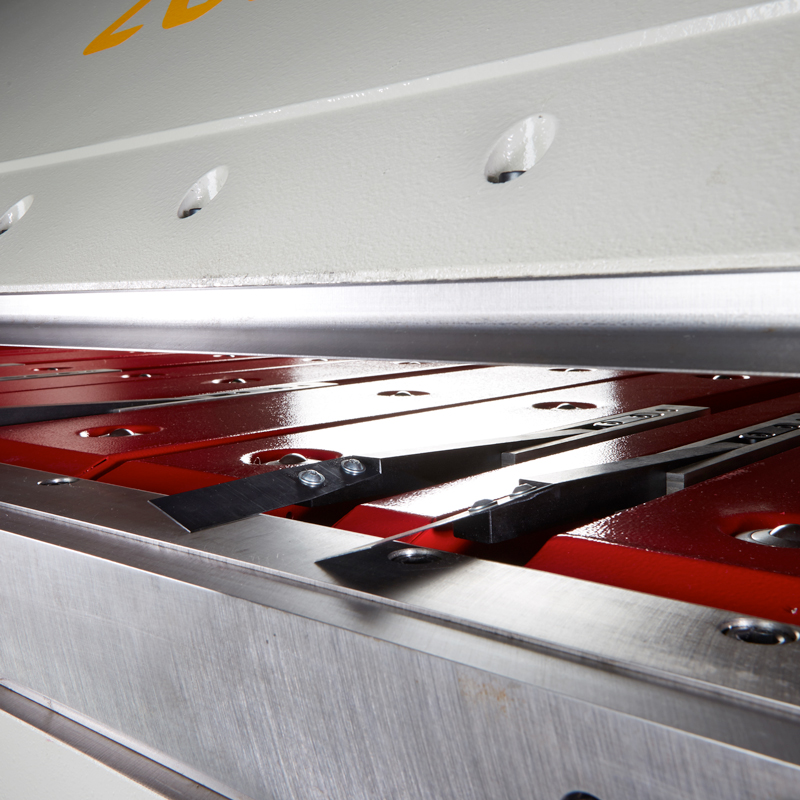

- Flat lower beam with feather style backgauge fingers
- 15.6” 2D touch screen control on swinging arm for front and rear operation
- High speed and high pressure clamping
- Virtually no marking on material
- Safe edge can be achieved without tool change
- Very quiet with low energy consumption as motors only run when machine is working
- Manual folding beam adjustment
- Manual crowning system
- Front light guards barriers for use with rear operation
- 3D CNC touch screen controller
- Longer length back gauges with U and L shape configurations
- Squaring arm for rear backgauge table
- Stainless steel backgauge table
- Brush table to protect material

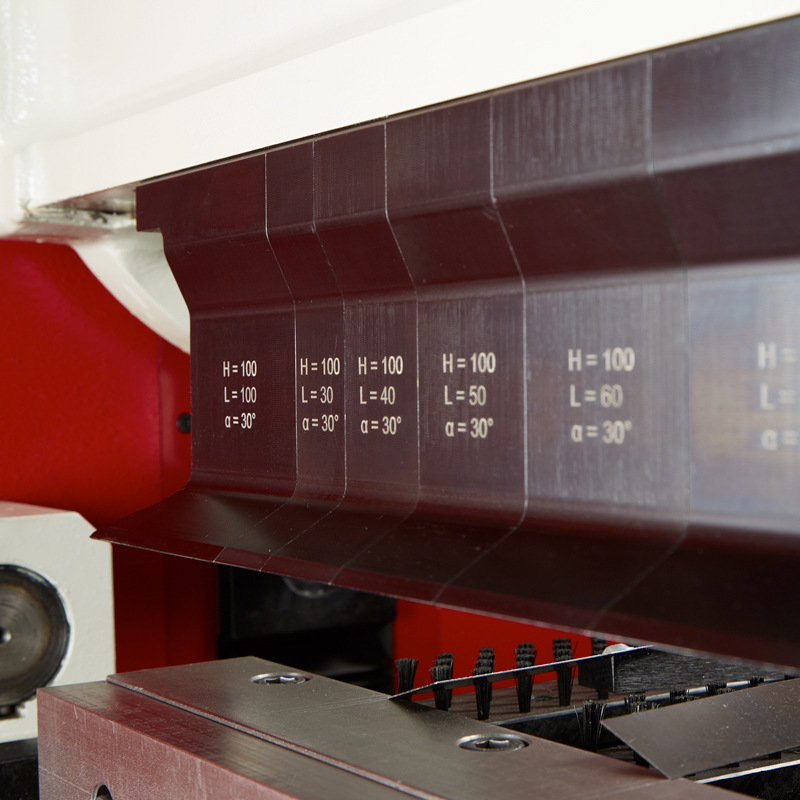

- 60mm, 90mm and 120mm high divided tooling with 30 degree feet and 25mm clearance According to model
- Motorised folding beam adjustment
- Manual crowning system
Technical Specification
Model:
| Model | ESR 2550.25 | |
| Bending Width | mm | 2550 |
| Bending Thickness - Mild Steel | mm | 2.5 |
| Bending Thickness - Stainless Stainless | mm | 1.5 |
| Bending Thickness - Aluminium | mm | 3.5 |
| Clamping Beam Axis Speed | mm/sec | 60 |
| Folding Beam Axis Speed | mm/sec | 85 |
| Back Gauge Axis Speed | mm/sec | 200 |
| Clamping Beam Motor | kW | 1.5 |
| Folding Beam Motor | kW | 3.0 |
| Back Gauge Motor | kW | 0.4 |
| Width | mm | 3850 |
| Length | mm | 2300 |
| Height | mm | 2100 |
| Weight | kg | 4350 |
