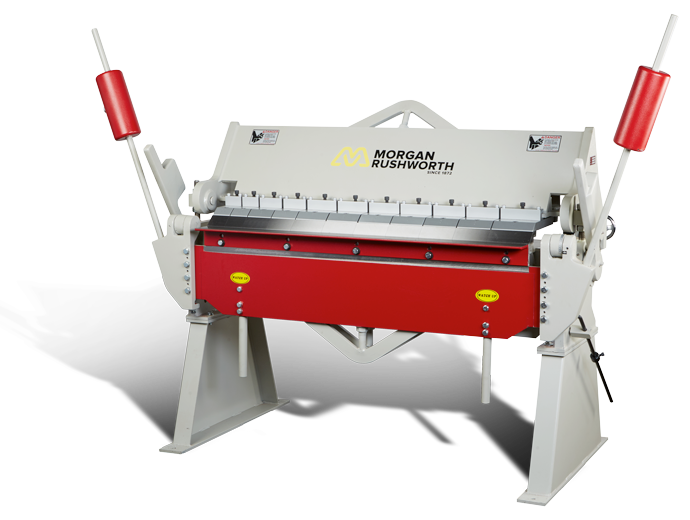

Morgan Rushworth BP 1270.25 Manual Box & Pan Folder
The heavy duty Morgan Rushworth Manual Box and Pan Folders are available in a range of sizes from 1270mm wide up to 3050mm. Intended for working with sheet metal material they have a capacity of up to 2.5mm thick except on the 3 metre model which accepts 2mm. All models feature 45° hardened and ground segmented fingers allowing both straight and box & pan folding in a range of materials. The counterbalance weights assist the operator, especially with repetitive cycles.
Download Product Sheet Email Enquiry
FEATURES & OPTIONS AVAILABLE
- Box and pan design
- Adjustable angle stops
- 45° hardened and ground clamping beam fingers
- Various clamping beam segment sizes supplied
- Counterbalance weights to assist operator
- Adjustable bending radius for material thickness
- Manual crowning of clamping and folding beams
Technical Specification
Model:
| MODEL | BP 1270.25 | |
| Capacity | mm | 2.5 |
| Bending Length | mm | 1270 |
| Maximum Folding Angle | 135° | |
| Quantity & Size of Fingers | mm | 2 x 76 |
| 2 x 102 | ||
| 6 x 127 | ||
| 1 x 152 | ||
| Length | mm | 1800 |
| Width | mm | 850 |
| Height | mm | 1100 |
| Weight | Kg | 900 |
