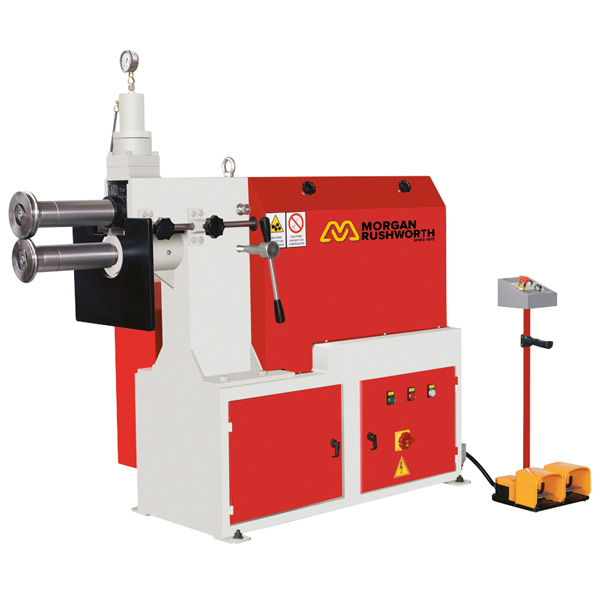

Morgan Rushworth HPS 260.2.5 Hydraulic Swaging Machine
The Morgan Rushworth HPS 260.2.5 swaging machine is a hydraulic powered unit. Swaging machines are designed to form various shapes to sheet material and are particularly suited for tubular ductwork applications. Easily interchangeable rolls are included as standard equipment to form the specific shape required.
Download Product Sheet Email Enquiry
FEATURES & OPTIONS AVAILABLE
- Steel welded frame
- Adjustable idler roll
- Adjustable end stop
- Reduction motor with brake
- 3 sets of standard rolls
- Optional special rolls avaiable
Technical Specification
Model:
| MODEL | HPS 260.2.5 | |
| Material Thickness (Mild Steel) | mm | 2.5 |
| Roll Diameter | mm | 92 |
| Roll-Body Distance | mm | 260 |
| Motor Power | kW | 1.5 + 0.55 |
| Length | mm | 1200 |
| Width | mm | 700 |
| Height | mm | 1200 |
| Weight | kg | 320 |
