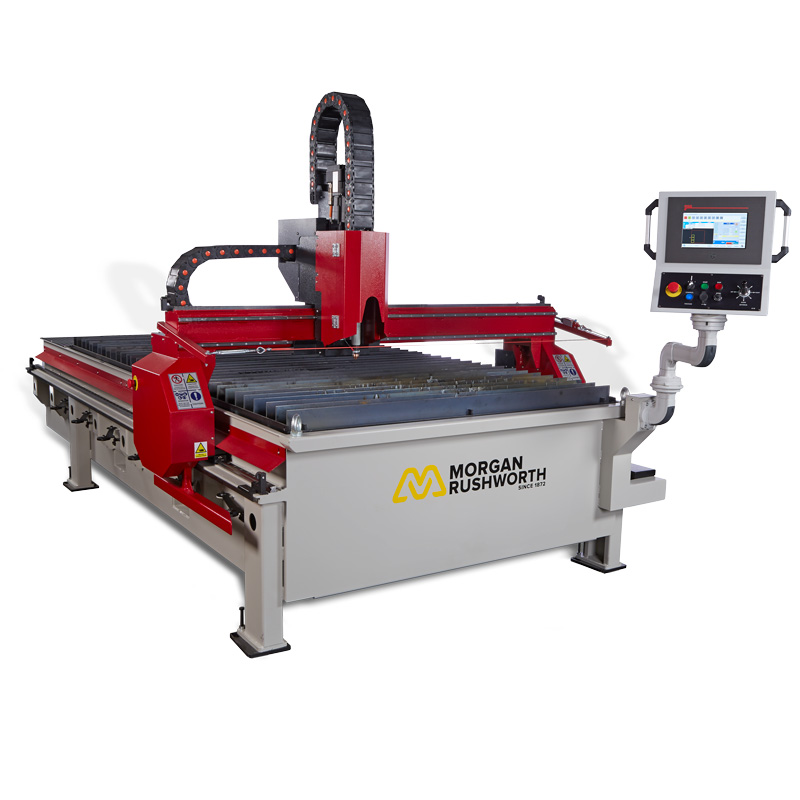

Morgan Rushworth ECP 1225/105 Compact Plasma Cutting Machine 415V
The Morgan Rushworth ECP CNC Compact Plasma cutting machines have been especially designed for simple but accurate cutting of sheet and plate material and are fitted with an operator friendly CNC controller supplied together with auto nesting software. These models are equipped with the class leading Hypertherm Powermax power source utilising single gas plasma technology. The result is a high quality machine delivering low initial and operating costs, high productivity, superior cut quality and unsurpassed reliability.
Download Product Sheet Email Enquiry
FEATURES & BENEFITS
-
1.25 and 1.5 metre Bed Widths
-
2.5 and 3 metre Bed Lengths
-
45 to 200 Amp Plasma Power
-
Positioning Speed up to 15 m/min
-
Pronest LT Nesting Software
-
Optional water table
FEATURES & OPTIONS AVAILABLE

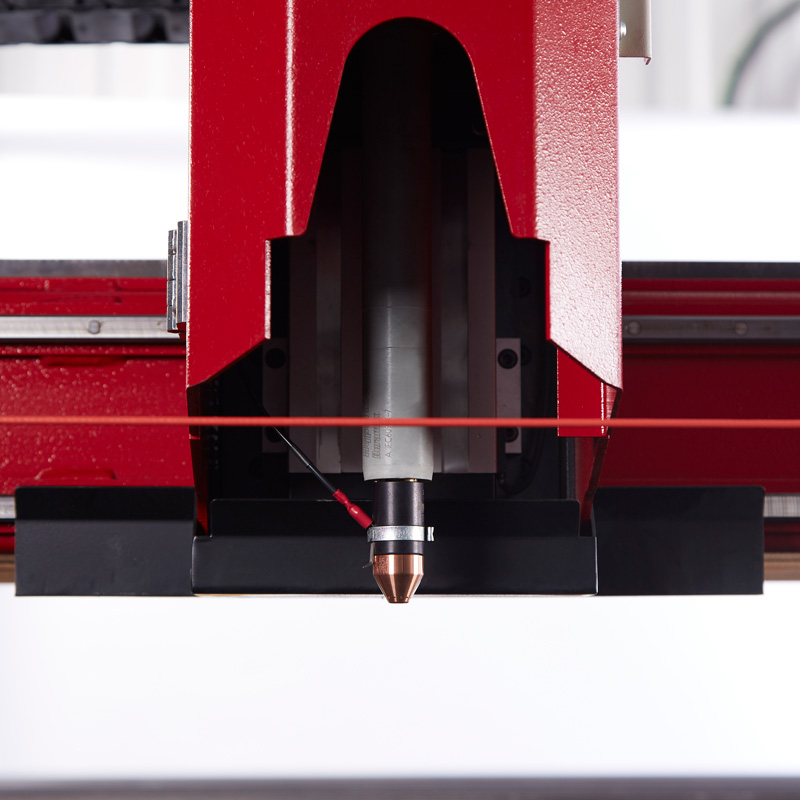

- Hypertherm Powermax 105 plasma unit for single gas cutting
- Air or Nitrogen cutting

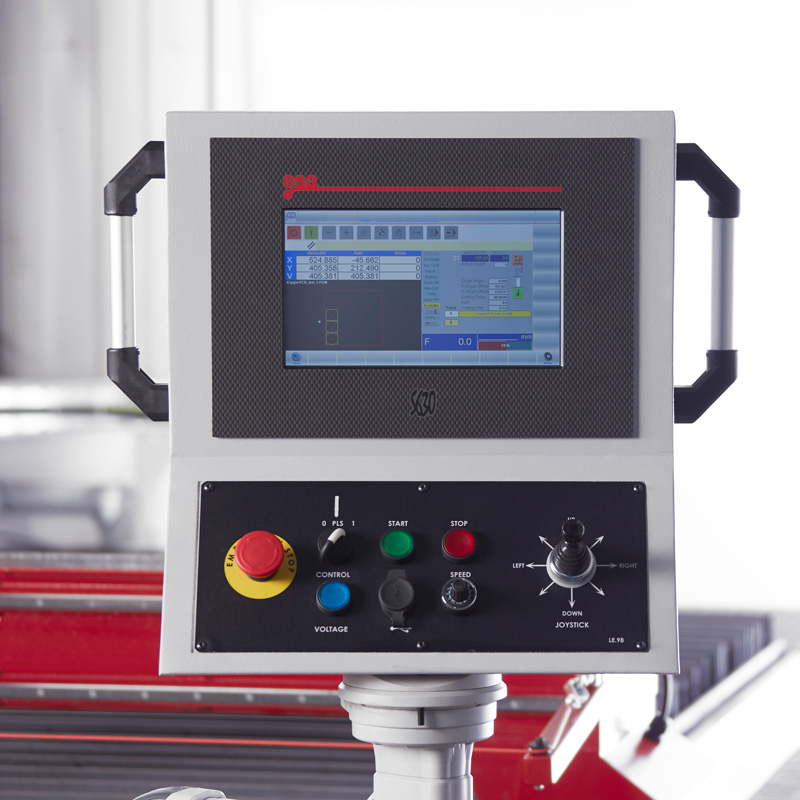

- Easy to use CNC controller with shape library
- Automatic torch height control
- Torch collision protection system

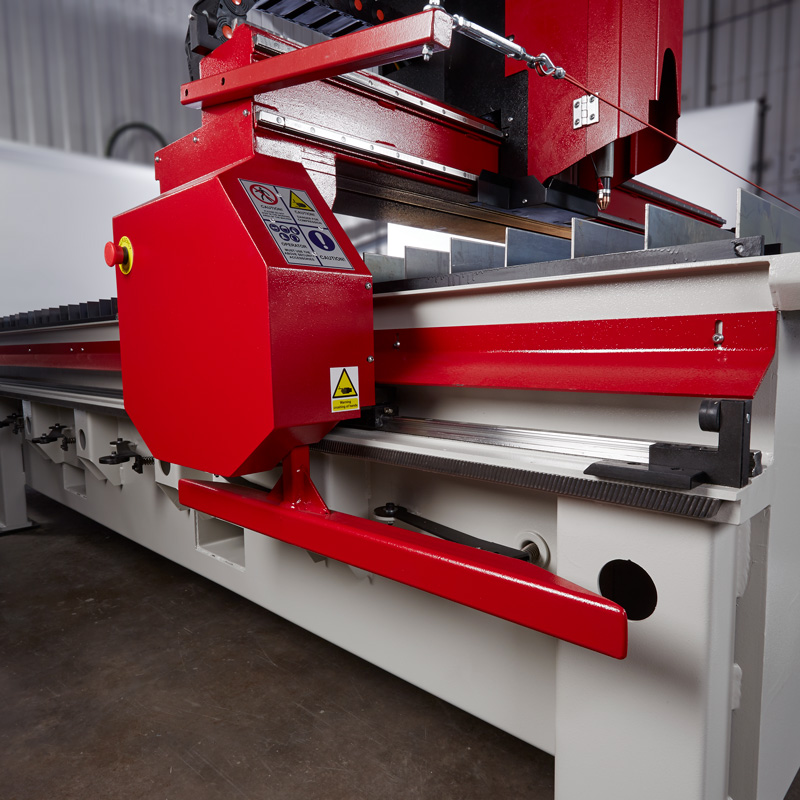

- Automatic ventilation and smoke extraction system ready to be connected to a filtration system
- Positioning speed 15 m/min
- Positioning accuracy +/- 0.02mm
- LMT 25mm high accuracy linear rail
- High quality Eisele gearbox
- Digital servo motors and drivers
- Gudel helical rack and pinion system
- Auto nesting software
- Water table in lieu of extraction table
- Extraction/filtration system
Technical Specification
Model:
| MODEL | ECP 1225/105 | |
| Capacity from Pierce | ||
| Mild Steel | mm | 20 |
| Stainless | mm | 20 |
| Aluminium | mm | 20 |
| Capacity from Edge Start | ||
| Mild Steel | mm | 40 |
| Stainless | mm | 32 |
| Aluminium | mm | 32 |
| Table Width | mm | 1280 |
| Table Length | mm | 2530 |
| X Axis Stroke | mm | 1225 |
| Y Axis Stroke | mm | 2530 |
| Z Axis Stroke | mm | 200 |
| Table Height | mm | 836 |
| Table Loading | kg/m² | 750 |
| Length | mm | 3630 |
| Width | mm | 1850 |
| Height | mm | 1954 |
| Weight | kg | 2250 |
