Morgan Rushworth XTR 6017A Tube Laser Cutting Machine

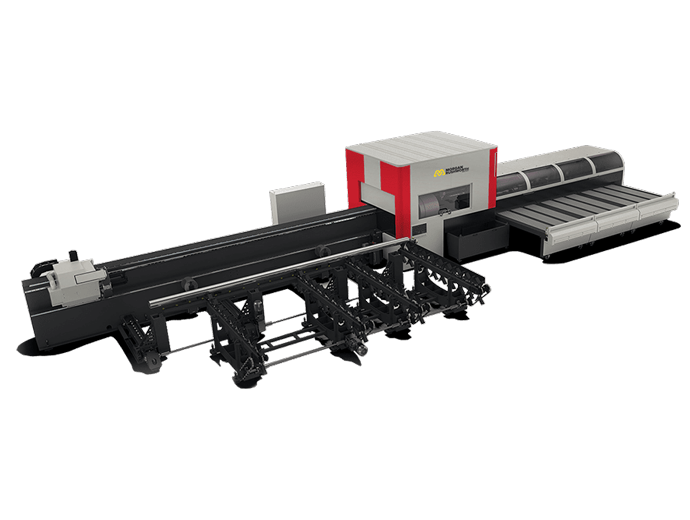

The Morgan Rushworth XTR range of Laser tube profiling systems combine the latest in fiber laser technology with powerful automation solutions. Available up to 8m tube lengths and 220mm processing diameter, the XTR can process a wide variety of profiles including open and complex shapes with exceptional edge quality. Equipped with market leading componentry including the Beckhoff control platform, the XTR truly sets the benchmark for European Tube Laser manufacture.

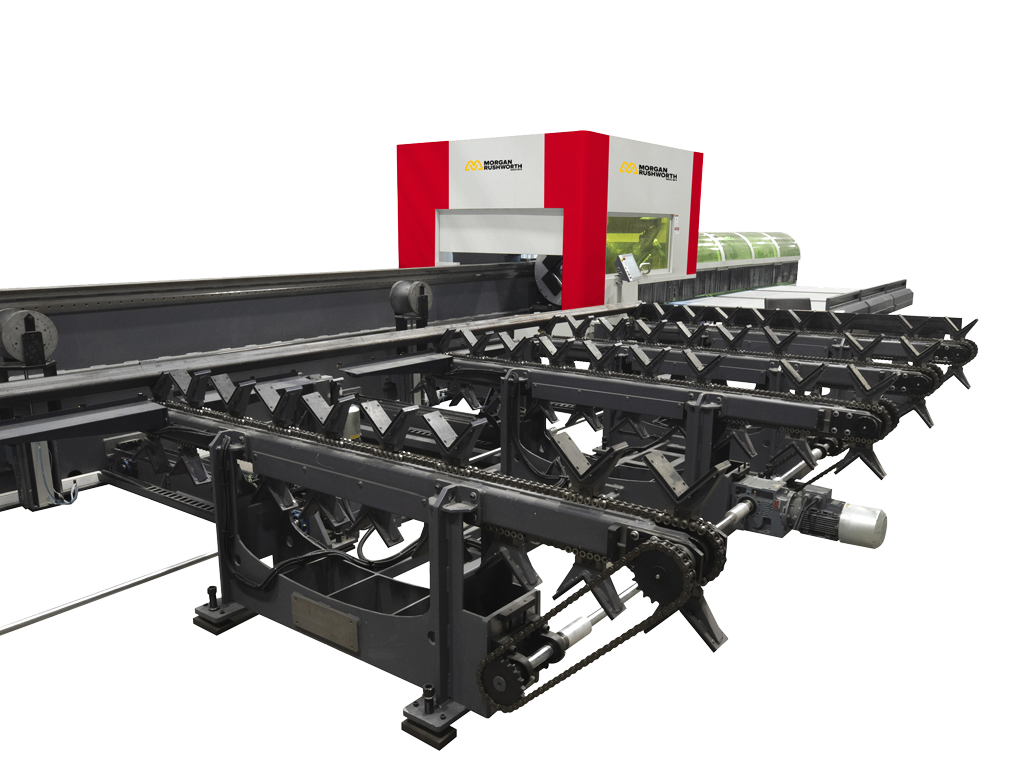

Utilising an innovative conveyor type loading automation, the XTR is the ultimate in open section profiling utilizing a multi axis cutting head.
Download Product Sheet Email Enquiry
FEATURES & BENEFITS
-
Up to 8m Length
-
Up to 220mm Diameter
-
1 to 4 kW Laser Power
-
1.0G Acceleration
-
3D Profile cutting
FEATURES & OPTIONS AVAILABLE
- Servo controlled 3 axis gantry motion system with rack & pinion for high acceleration & cutting speeds
- Linear guided infeed triple chuck system with minimum 60mm scrap piece
- Sub prime 3rd chuck with 1500mm travel

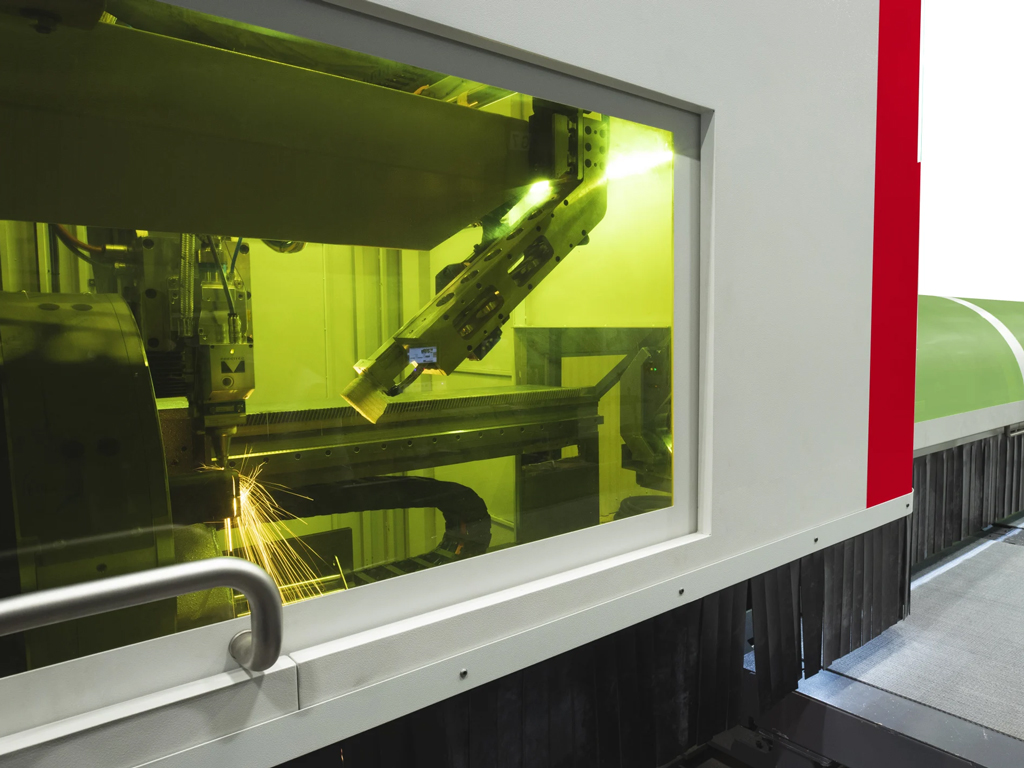

- Fully protected Laser processing cabin with pneumatic Access door

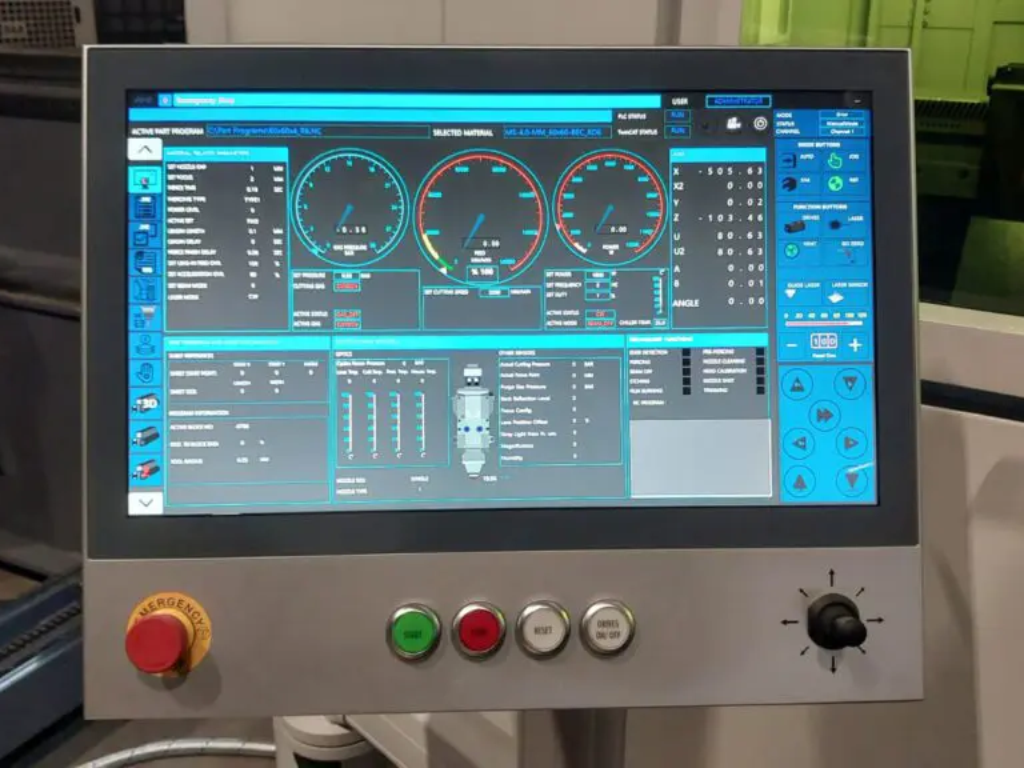

- Beckhoff Control Platform with intuitive touchscreen machine controller
- Laser resonator with fibre optic beam delivery system
- Extended Outfeed support – 4m/6m/8m
- Conveyor outfeed
- 3D 5 Axis Bevel Head
- Weld Seam Detection
- UPS: Uninterruptible power supply
- Filtration
- Lantek Software
- Lantek Profile Cutting Module
- Deslag option
- Nozzle Cleaning
Technical Specification
Model:
| Model | XTR 6017A | |
| Maximum Tube Length | mm | 6100 |
| Cutting Dia – Round | mm | 16 - 170 |
| Cutting Dia – Square/Rectangle | mm | 170 x 170 |
| X axis travel | mm | 450 |
| Y axis travel | mm | 6500 |
| Z axis travel | mm | 200 |
| Max tube weight | kg | 240 |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Acceleration | mm/s2 | 10 |
| X axis max running speed | m/min | 45 |
| Y axis max running speed | m/min | 70 |
| W axis max rotating speed | rpm | 80 |
