Morgan Rushworth XPE Servo Electric Press Brakes
The Morgan Rushworth XPE range of servo electric pressbrakes are designed with a belt and pulley system providing low energy useage, high bending cycle times and high accuracy. The range spans from 1550mm x 40 tonne machines up to 3100mm x 100 tonne, with all models equipped with the ESA VIS-875W 2D CNC touch screen controller. The combination of consistent pressure across the beam from the pulley system, high positioning accuracy of 0.01mm and the O frame design with virtually no flex results in a level of accuracy far higher than in conventional hydraulic machines. The side frames are fitted at each end of the machine meaning that the backgauge can be used for the full width of the machine to the maximum depth. The XPE servo electric press brakes are far more reliable than hydraulic machines with no rams, seals, pumps, pipes etc resulting in less down time.
View Models
FEATURES & BENEFITS
-
40 to 100 Tonne Capacity
-
1550 to 3100mm Bending Lengths
-
Sectionalised Euro Style Top Tool
-
Multi Vee Euro Style Bottom Die
-
2D or 3D Program Entry
-
4 to 8-axis CNC Control
Features

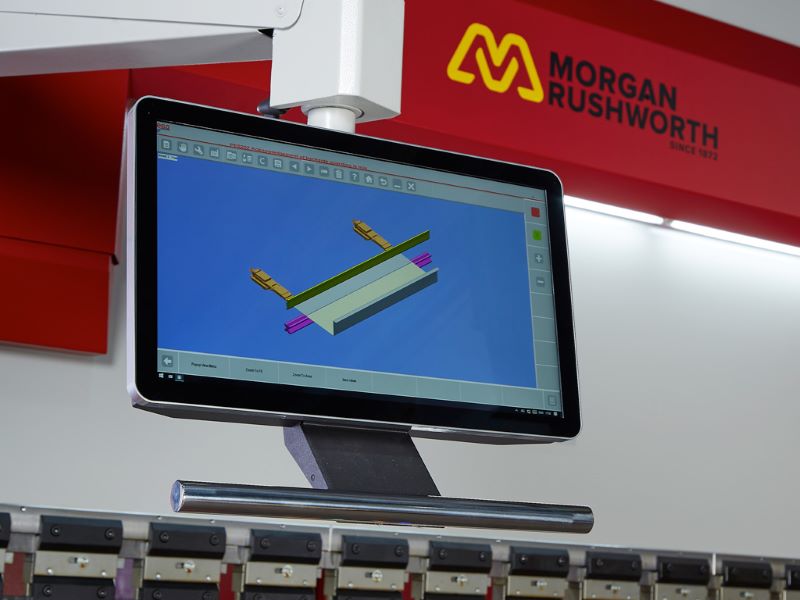

The ESA VIS-875W is multi-axis CNC control with numerical and 2D graphical programming and 2D or 3D visualisation. A touch screen interface makes this control very easy to work with.
All PBXS models feature euro style top tool holders and a sectionalised goose neck top tool with a multi vee bottom die. A huge variety of optional tooling is available for specific applications.
XPE models are designed with the side frames at the outside of the machine, allowing bending at full width capacity over the whole back gauge range, without the restriction of a throat.
FEATURES & OPTIONS AVAILABLE ON ALL MODELS
For technical specifications select the model below.
- Approximately 50% less energy use compared with hydraulic machines
- Approximately 30% faster cycle times
- Approximately 75% less servicing costs than hydraulic machines
- Green technology – no oil or hazardous waste affecting the environment
- Even pressure across the bending beam negates requirement for crowning systems
- frame design results in minimum distortion
- Almost noiseless operation
- X and R axis backgauge
- ESA VIS-875W 2D CNC touch screen controller
- Offline programming functionality on office PC
- Multi axis backguages
- Hydraulic tool clamping
- Laser angle measuring system
- Sheet follower support arms
- Optional off line ESA Bend 3D Software with Control Viewer
AVAILABLE MODELS & CAPACITIES
Click on the Model to view the Technical Specification and Download the Product Sheet.
| MODEL | XPE 1550.40 | |
| Bending Power | tonne | 40 |
| Bending Length | mm | 1530 |
| Y Axis Approach Speed | mm/sec | 170 |
| Y Axis Bending Speed | mm/sec | 10 |
| Y Axis Return Speed | mm/sec | 170 |
| X Axis Travel | mm | 750 |
| R Axis Travel | mm | 160 |
| No of Back Gauge Fingers | 2 | |
| No of Sheet Support Arms | 2 | |
| Stroke | mm | 240 |
| Daylight | mm | 505 |
| Motor Power | kW | 2 x 5.5 |
| Nominal Power (excluding options) | kW | 20.7 |
| Length | mm | 2790 |
| Width | mm | 1850 |
| Height | mm | 2525 |
| Weight | kg | 4800 |
| MODEL | XPE 2100.50 | |
| Bending Power | tonne | 50 |
| Bending Length | mm | 2100 |
| Y Axis Approach Speed | mm/sec | 150 |
| Y Axis Bending Speed | mm/sec | 10 |
| Y Axis Return Speed | mm/sec | 150 |
| X Axis Travel | mm | 750 |
| R Axis Travel | mm | 160 |
| No of Back Gauge Fingers | 2 | |
| No of Sheet Support Arms | 2 | |
| Stroke | mm | 240 |
| Daylight | mm | 505 |
| Motor Power | kW | 2 x 5.5 |
| Nominal Power (excluding options) | kW | 20.7 |
| Length | mm | 3300 |
| Width | mm | 1850 |
| Height | mm | 2525 |
| Weight | kg | 5600 |
| MODEL | XPE 2550.80 | |
| Bending Power | tonne | 80 |
| Bending Length | mm | 2550 |
| Y Axis Approach Speed | mm/sec | 90 |
| Y Axis Bending Speed | mm/sec | 10 |
| Y Axis Return Speed | mm/sec | 90 |
| X Axis Travel | mm | 750 |
| R Axis Travel | mm | 160 |
| No of Back Gauge Fingers | 2 | |
| No of Sheet Support Arms | 2 | |
| Stroke | mm | 240 |
| Daylight | mm | 505 |
| Motor Power | kW | 2 x 5.5 |
| Nominal Power (excluding options) | kW | 20.7 |
| Length | mm | 3810 |
| Width | mm | 1850 |
| Height | mm | 2525 |
| Weight | kg | 6400 |
| MODEL | XPE 3100.100 | |
| Bending Power | tonne | 100 |
| Bending Length | mm | 3050 |
| Y Axis Approach Speed | mm/sec | 75 |
| Y Axis Bending Speed | mm/sec | 10 |
| Y Axis Return Speed | mm/sec | 75 |
| X Axis Travel | mm | 750 |
| R Axis Travel | mm | 160 |
| No of Back Gauge Fingers | 2 | |
| No of Sheet Support Arms | 2 | |
| Stroke | mm | 240 |
| Daylight | mm | 505 |
| Motor Power | kW | 2 x 5.5 |
| Nominal Power (excluding options) | kW | 20.7 |
| Length | mm | 4350 |
| Width | mm | 1850 |
| Height | mm | 2525 |
| Weight | kg | 7200 |
