Morgan Rushworth XTS Tube Laser Cutting Machines
The Morgan Rushworth XTS Compact (2-Chuck) Tube Laser streamlines tube feeding and precision cutting through an integrated semi-automatic loading system. Built on a side-mounted machine structure, it accommodates tube diameters spanning 20mm to 360mm and incorporates a clearance-enabled front chuck supported by fully servo-controlled floating mechanisms. Operating with power options of 3kW, 6kW, or 12 kW and acceleration rates reaching 1.0G, the system manages raw material bundles up to 1,500kg while handling infeed lengths up to 7.5m and outfeed lengths up to 6m.
View Models
FEATURES & BENEFITS
-
3 to 12 kW Laser Power
-
Up to 7.5m Infeed
-
Up to 6m Outfeed
-
Up to 360mm Tube Diameter
-
Up to 1.0G Acceleration
-
Up to 1,500kg Bundle Weight
Features
.jpeg)

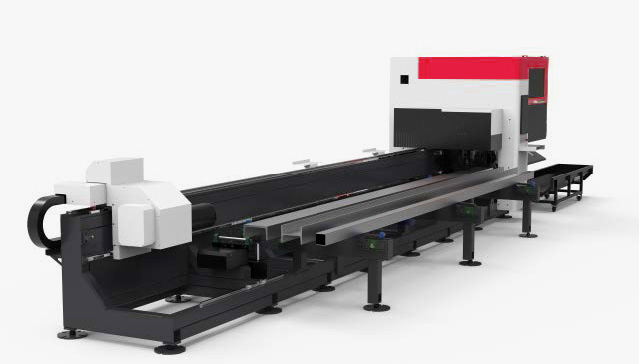

LOADING SYSTEM
Automatic loading system for various tubes and profiles including; tubes, channel, I-beams, and custom shaped tubes, etc.

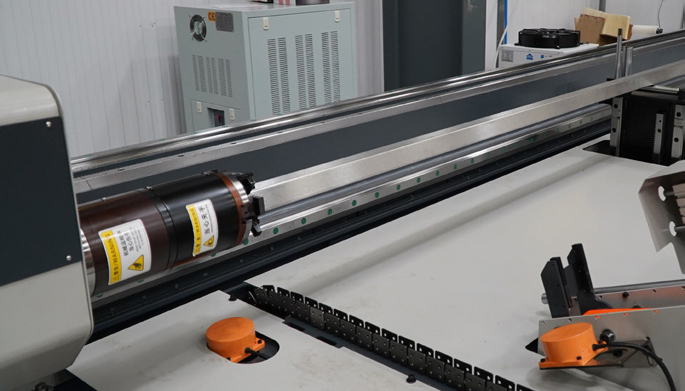

REAR CHUCK
Automatically move between front and rear chucks, achieving the shortest possible tail-off and maximising material utilisation.
.jpeg)

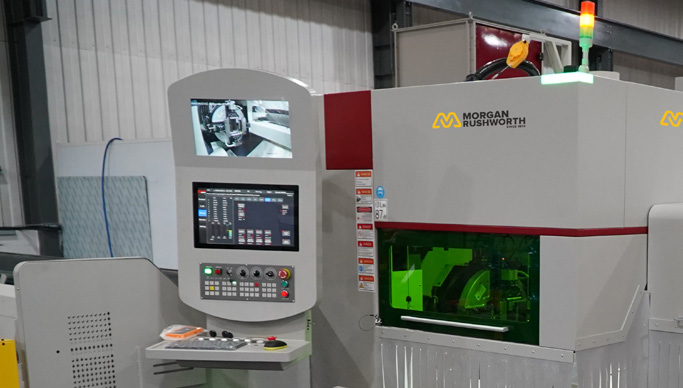

PA CONTROLLER
Advanced CNC control for tube and profile cutting, equipped with Lantek Flex3D for tube and Sigmanest /Sigmatube software.
FEATURES & OPTIONS AVAILABLE ON ALL MODELS
For technical specifications select the model below.
- Fibre optic beam delivery system
- Ospri Autofocus Laser Cutting Head
- Applicable tube types : Round tube, square tube, rectangular tube, oval tube, D-shaped steel,
- Applicable profile types : T-shaped, H-shaped, channel steel, angle steel, I-beams etc.
- Material Receiving and Collecting System
- CE compliant complete machine enclosure and light barrier system
- PA Control System
- Lantek / Sigmanest Software
- Chain Loader Semi-Automatic Loading System
- Zero scrap cutting with pneumatic clamping system to avoid final parts being stuck in the chuck.
- 2 Chuck Machine
- Scrap collection draw
- 3m Outfeed
- Bevel Head - LT Ultra
- Weld Seam Detection
- 4m / 6m Outfeed
- Head Scanning
- IPG Laser Source
- Filtration & Extraction
AVAILABLE MODELS & CAPACITIES
Click on the Model to view the Technical Specification and Download the Product Sheet.
| Model | XTS 6023.3000 | |
| Laser Source | kW | 3.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 230 |
| Cutting Dia – Square/Rectangle | mm | 230 x 230 |
| Max tube weight | kg | 225 |
| Max Bundle loading weight | kg | 900 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6023.6000 | |
| Laser Source | kW | 6.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 230 |
| Cutting Dia – Square/Rectangle | mm | 230 x 230 |
| Max tube weight | kg | 225 |
| Max Bundle loading weight | kg | 900 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7523.3000 | |
| Laser Source | kW | 3.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 230 |
| Cutting Dia – Square/Rectangle | mm | 230 x 230 |
| Max tube weight | kg | 225 |
| Max Bundle loading weight | kg | 900 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7523.6000 | |
| Laser Source | kW | 6.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 230 |
| Cutting Dia – Square/Rectangle | mm | 230 x 230 |
| Max tube weight | kg | 225 |
| Max Bundle loading weight | kg | 900 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6028.3000 | |
| Laser Source | kW | 3.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 280 |
| Cutting Dia – Square/Rectangle | mm | 280 x 280 |
| Max tube weight | kg | 400 |
| Max Bundle loading weight | kg | 1,500 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6028.6000 | |
| Laser Source | kW | 6.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 280 |
| Cutting Dia – Square/Rectangle | mm | 280 x 280 |
| Max tube weight | kg | 400 |
| Max Bundle loading weight | kg | 1,500 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6028.12000 | |
| Laser Source | kW | 12.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 280 |
| Cutting Dia – Square/Rectangle | mm | 280 x 280 |
| Max tube weight | kg | 400 |
| Max Bundle loading weight | kg | 1,500 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7528.3000 | |
| Laser Source | kW | 3.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 280 |
| Cutting Dia – Square/Rectangle | mm | 280 x 280 |
| Max tube weight | kg | 400 |
| Max Bundle loading weight | kg | 1,500 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7528.6000 | |
| Laser Source | kW | 6.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 280 |
| Cutting Dia – Square/Rectangle | mm | 280 x 280 |
| Max tube weight | kg | 400 |
| Max Bundle loading weight | kg | 1,500 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7528.12000 | |
| Laser Source | kW | 12.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 280 |
| Cutting Dia – Square/Rectangle | mm | 280 x 280 |
| Max tube weight | kg | 400 |
| Max Bundle loading weight | kg | 1,500 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 80 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6036.3000 | |
| Laser Source | kW | 3.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 360 |
| Cutting Dia – Square/Rectangle | mm | 360 x 360 |
| Max tube weight | kg | 530 |
| Max Bundle loading weight | kg | 2,000 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 60 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6036.6000 | |
| Laser Source | kW | 6.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 360 |
| Cutting Dia – Square/Rectangle | mm | 360 x 360 |
| Max tube weight | kg | 530 |
| Max Bundle loading weight | kg | 2,000 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 60 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 6036.12000 | |
| Laser Source | kW | 12.0 |
| Maximum Tube Length | mm | 6000 |
| Cutting Dia – Round | mm | 20 - 360 |
| Cutting Dia – Square/Rectangle | mm | 360 x 360 |
| Max tube weight | kg | 530 |
| Max Bundle loading weight | kg | 2,000 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 60 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7536.3000 | |
| Laser Source | kW | 3.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 360 |
| Cutting Dia – Square/Rectangle | mm | 360 x 360 |
| Max tube weight | kg | 530 |
| Max Bundle loading weight | kg | 2,000 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 60 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7536.6000 | |
| Laser Source | kW | 6.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 360 |
| Cutting Dia – Square/Rectangle | mm | 360 x 360 |
| Max tube weight | kg | 530 |
| Max Bundle loading weight | kg | 2,000 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 60 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
| Model | XTS 7536.12000 | |
| Laser Source | kW | 12.0 |
| Maximum Tube Length | mm | 7500 |
| Cutting Dia – Round | mm | 20 - 360 |
| Cutting Dia – Square/Rectangle | mm | 360 x 360 |
| Max tube weight | kg | 530 |
| Max Bundle loading weight | kg | 2,000 |
| Type of infeed supports | Servo controlled | |
| Type of outfeed supports | Servo controlled | |
| X + Y axis positioning accuracy | mm/meter | +/- 0.05 |
| X + Y axis repeatability accuracy | mm/meter | +/- 0.03 |
| Axis Acceleration | G | 1.0 |
| Chuck speed | rpm | 60 |
| Feed speed | m/min | 60 |
| Cycle time | s | 18 |
